Temporary Edge Falling Protection Fence System for Construction Contractors
Temporary Edge Falling Protection Fence System also named Steel Mesh Barrier, is a new simple update design from wire mesh fence. It is more easy to operate and fast installation, can save time during construction. The steel mesh Barrier is very popular during contractors, as it can use more times, portable, Easy to install and remove. A lot of contractors located in Middle East, UK often use this kind of fence, and imported from our facoty.
Simple Description for Edge Protection Steel Mesh Barrier:
| Wire Diameter of Edge Steel Mesh Barrier | Can be from 5.0mm to 8.0mm, Usually the horizontal wire afford more impact, used more thicker Wire. |
| Mesh Hole of Edge Protection Fence | Common Mesh Aperture |
| Panel Size of Steel Mesh Fence | Common Size: 1150*2600, Also can make customized |
| Toe Board at the bottom of Fence | Length accord with Steel Mesh Panel Lengh |
| Raw Material of Steel Fence | Low Carbon Steel Wire or Galvanized Wire ( Q195 ) |
| Surface Treatment of Mesh Fence | Galvanized, Powder Coated |
| Color after Powder Coated | Silver, Narural Color, Red, Blue, White and other RAL Series. |
| Package for Steel Barrier System | Usually in Metal Pallet, or Customized |
Application for Edge Protection Barrier:
1. Temporary Roof Edge Protection Barriers
Because it is easy to install and remove, It is often used as the protection Wall as the border of the building, to protect people falling down, also
Prevent items from falling.
2. Pontoon Mesh Edge Protection System For Floating Platforms
Stand the Edge Protection Welded Fence around the Floaing Platfroms, to inform a small place, let people more safe.
3. Fall Prevention of Edge Protection Fence
At the bottom of the Protection Barrier, there is Toeboard, that can prevent Sand, small stones Falling down.
4. Edge Protection Fence for Walls & Shafts
It also can as a fence or a wall for protection.
Specification for Edge Protection Fence Barrier / Steel Mesh Barrier:
| Type | Border Wire | Mesh Wire | Length | Width | Color |
| Steel Mesh Barrier with Toeboard | 8.0mm | 5.0mm | 2600mm | 1150mm | RAL Series |
| Steel Mesh Barrier Without Toeboard | 8.0mm | 5.0mm | 2600mm | 1150mm | RAL Series |
| Steel Mesh Barrier Make Up | 8.0mm | 5.0mm | 2600mm | 1150mm | RAL Series |
| Steel Mesh Barrier 1.3M | 8.0mm | 5.0mm | 1300mm | 1150mm | RAL Series |
| Steel Mesh Barier Make Up 1.3M | 8.0mm | 5.0mm | 1300mm | 1150mm | RAL Series |

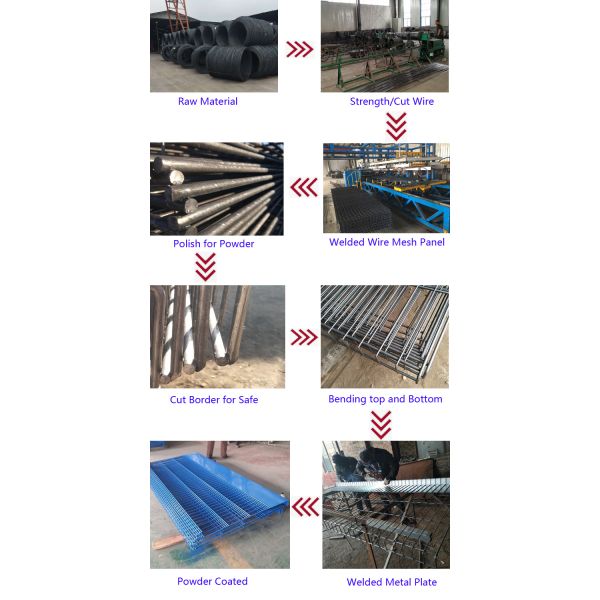

Prodcution Flow Sheet for Edge Protection Fence System:
