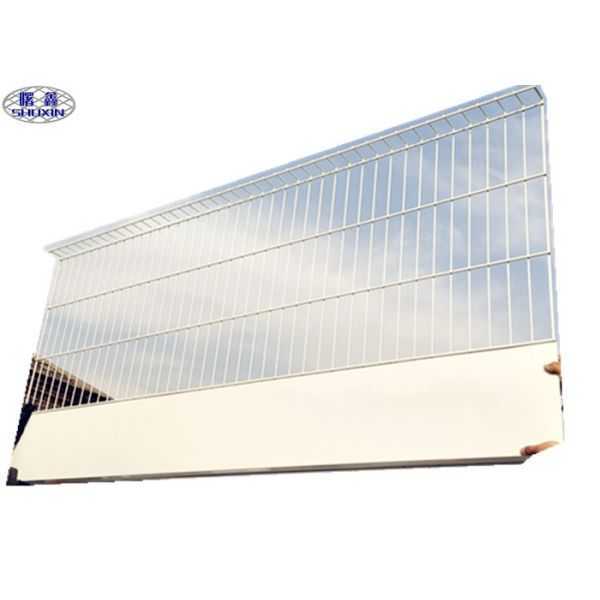

Temporary Fall Prevention Edge Protection Fence For Construction
The Edge Barrier Protection Safety Fence is mainly made by Welded Wire Mesh Panel, after futher processing, is structurally desighed to secure construction working platforms for a variety of Applications. Such as Railway-Infrastructure, Roof Edge Protection Barriers, Mesh Guard Edge Protection Panels, Pontoon Mesh Edge Protection System For Floating Platforms, and so on.
This simple install system offers maximum protection for site personnel on the construction slabs, around stair and lift wells, excavations etc. The removable panels, with built-in kickplates, and post system is easily transported, installed removed and stored.
Product Description :
Lightweight, versatile Edge Protection fence that provides hard-mesh coverage with impact-absorbing capacity. Each weld can withstand a force of 500kg. Designed with closed return for greater debris containment, and with reinforced edges to prevent site damage. Guardrails, toeboard and debris mesh in one product.
Edge Protection Fence comply to EN 13374 Class A and incorporate guardrail, toe board and mesh infill in one. This method provides a high level of containment and often enhances the feeling of operative safety.
Our Edge Protection Mesh Barriers comply to EN 13374 Class A (although some providers also supply barriers complying to Class C) and incorporate guardrail, toe board and mesh infill in one. This method provides a high level of containment and often enhances the feeling of operative safety. Mesh barriers are considered to be simple to install as they require no specialist skills but also offer a professional look to a construction site. There are extensive attachments and accessories for this system which enables it to be applied to virtually any construction project.
Size : 2600 x 1150mm
Weight : 20kg
Features of Edge Protection system :
- Fully automated welded steel mesh with integral toeboard.(260mm)
- Galvanised wire with Powder coat finish to customer’s colour
- Tested to EN13374 Class A and B withstanding Static and Dynamic loading
- Close mesh spacing (60mm vertically) with 1.15m overall height
- Customer’s Logo can be attached on toeboard
 | Weight 20 kg
2.6 x 1.15m
Powder-coated
Conforms to EN 13374, class A
Barrier Frames Manufactured from high quality steel
It also has continous Wire, no cut wire, make the Temporary Portection Fence Smooth, Flat and Straight.
|
 | Bending on the Top of Edge Protection Fence There is a 90 Degree Bending on the top of Temporary Edge Protection Fence,
The Edge Safety Protection Fence can recycle many times.
|
 | Power Coated in a range of colours, accept customized with company logos in order to satisfy anyclient’s requirements
Powder Coated Surface Treatment is more bautiful and anti-rust,
Make its long using life to save the cost,
|
Application of Edge Protection Fence
Edge protection fence also named edge protection fence,edge protection is fully used in construction under building to protect people.
Components are robust and are painted or Galvanised finished for a long life and exposure to extreme weather climates. The use of Systemised Temporary Edge Protection Fence makes a significant contribution to the reduction of falls on site due to ease of use, increased safety and compliance to EN 13374.
